ABOUT

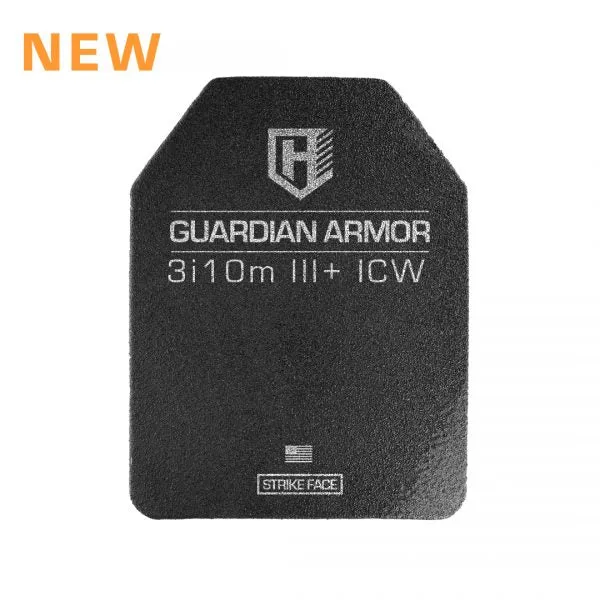

Ultra-light and extremely thin (less than half an inch) the Guardian™ 3i10m provides low visibility protection against Level III rifle and special threats when worn in conjunction with Level IIIA soft armor.
SPECIFICATIONS
- Protection: Level III and special threats ICW with level IIIA soft armor
- NIJ Standard 0101.06 TESTED: This product has been independently tested by an NIJ approved laboratory according to the NIJ 0101.06 standard of protection
- Key Advantages: Ultra-low visibility and ultra-lightweight
- Process: Made in XTclave™ ultra-high pressure consolidation
- Material: 100% DSM Dyneema® UHMWPE
- Exterior Cover: Available in Polyurea Rhino Extreme™ 11-50 anti spall coated system or 1000D Cordura® textured nylon
- Areal Density: 2.47 psf / 12 kg/m²
- Thinness: 0.47” / 12 mm
- Cut: Available in SAPI Multi Curve (XS to XL)
- Weight Chart: Reflects Rhino Extreme™ exterior cover, tolerance /- .15 lbs
- Warranty: 5 years on all ballistic material excluding exterior cover and 1 year on exterior cover material and workmanship
BALLISTIC ROUNDS TESTED
| PROTECTION | STANDARD | WEAPON | PROJECTILE | GR | VEL FT/S | VEL M/S | ( /- FT/S) |
|---|---|---|---|---|---|---|---|
| ICW | NIJ 0101.06 | Rifle | 7.62 mm FMJ, Steel Jacketed Bullets (M80) | 143 | 2780 | 847 | ( /- 30) |
| ICW | Special | Rifle | 7.62 x 39mm Mild Steel Core | 123 | 2400 | 731 | ( /- 50) |
| ICW | Special | Rifle | 5.56 x 45mm M193 | 55 | 3250 | 991 | ( /- 50) |
