SIZE & WEIGHT
| SIZE | SHAPE | CUT | WEIGHT |
|---|---|---|---|
| 10 x 12 | Multi Curve | Shooter Cut | 7.2 lbs / 3.3 kg |
SPECIFICATION
- Protection: Level IV Stand Alone Armor Piercing
- NIJ Standard 0101.06 CERTIFIED: This product is NIJ 0101.6 compliant “Certified” by NIJ and can be found on the NIJ’s CPL
- DEA: Hard Armor Protocol Compliant
- RST: Rifle Special Threats Validated
- Material: Ceramic strike face composite backing
- Exterior Cover: 1000D Cordura®, Textured Nylon
- Cut: The 10” x 12” shooters cut plates are considered nominal and the actual measurement is 9.5” x 11.5”.
- Thinness: 0.95”
- Warranty: 10 years on all ballistic material excluding exterior cover and 1 year on exterior cover material and workmanship.

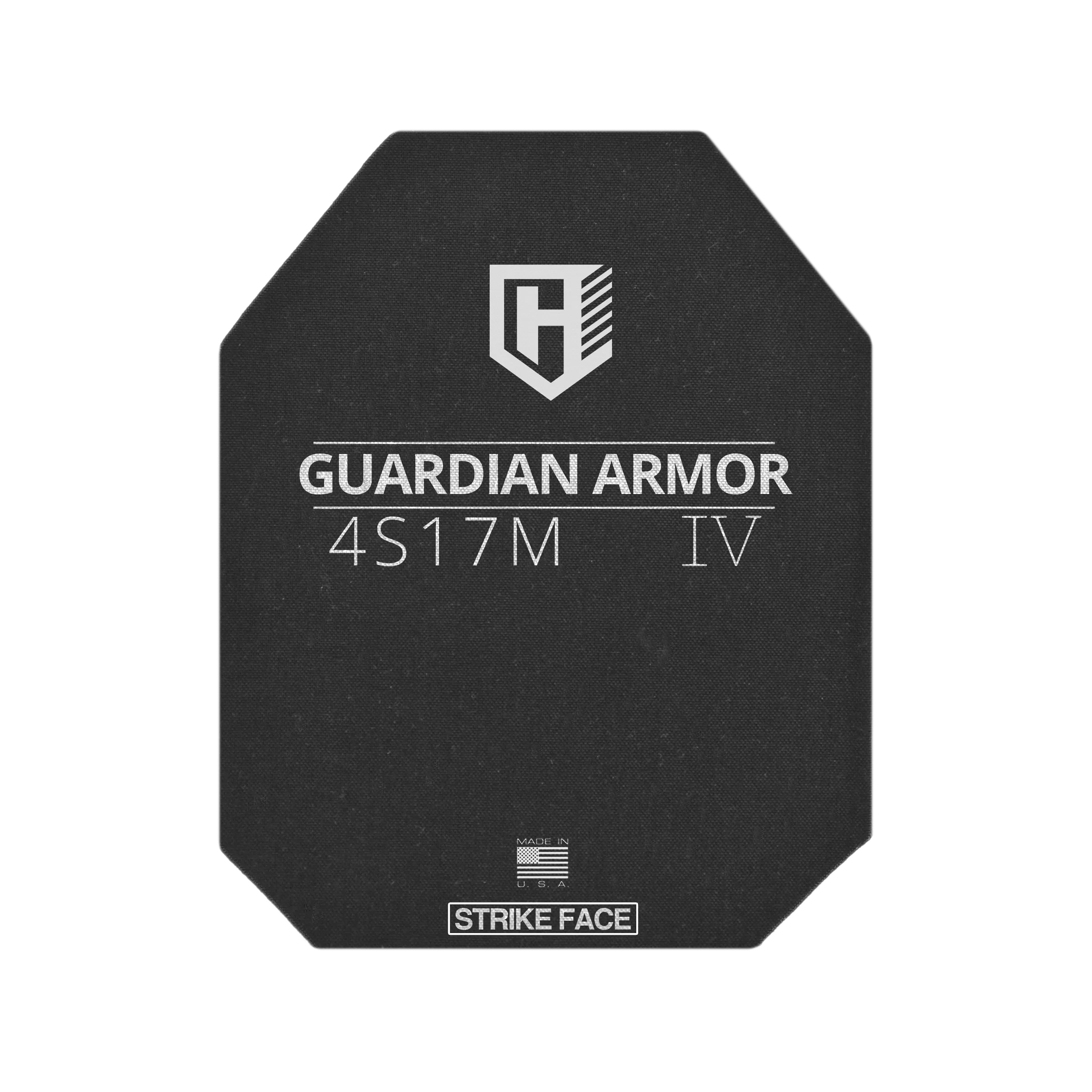

- Disclaimer: Text shown on strike face is for marketing purposes only. The actual labels on HighCom products are NIJ approved self-adhesive labels.
WEAPON TYPES
| WEAPON | AMMUNITION | VEL (FT/S ± 30) | VEL (M/S ± 9) |
|---|---|---|---|
| Rifle M-1 NIJ06 | 7.62 x 63 mm - AP M2 | 2880 | 878 |
| Rifle AK-47, M, SKS | 7.62 x 39 mm – API | 2380 | 725 |
| Rifle M-16/AR-15 | 5.56 x45mm – M855/SS109 | 3117 | 950 |
| Rifle M-16/AR-15 | 5.56 x45mm - M193 | 3150 | 960 |
| Rifle SVD, Dragunov | 7.62 x 54R-LPS | 2840 | 865 |
| Rifle SVD, Dragunov | 7.62 x 54R-L | 2840 | 865 |
| Rifle M-1 | 7.62 x 63 mm - JSP | 2780 | 847 |
| Rifle SVD, Dragunov | 7.62 x 54R -B-32 API | 2800 | 854 |
| Rifle FN FAL | 7.62 x 51 mm - M80 | 2780 | 847 |
| Rifle AK-47, M, SKS | 7.62 x 39 mm –Mild Steel Core | 2380 | 725 |
| Rifle AK-47, M, SKS | 7.62 x 39 mm – Ball | 2380 | 725 |
