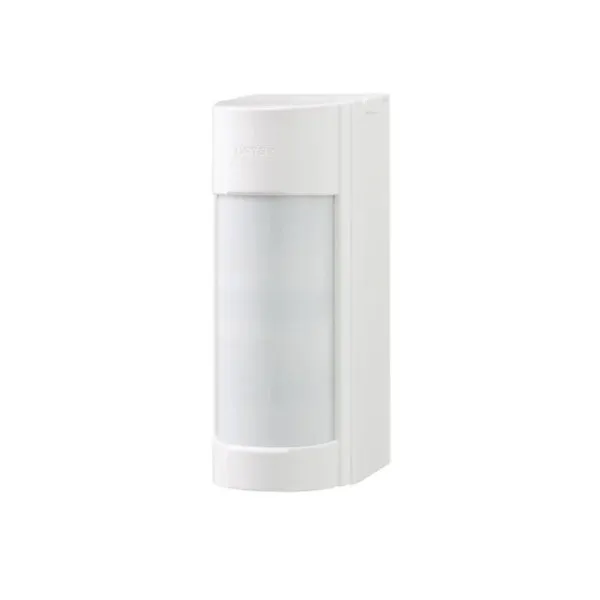

VXI-ST Outdoor 90-degree PIR
Optex Wired Series.
The VXI series is our best selling outdoor intrusion detection sensor range. It provides a very reliable approach detection with a range of up to 12m for residential and commercial applications. The sensor which should be mounted at ca 1.2m height includes two PIRs providing a double layered detection area, the sensor will only trigger when both layers are activated. The VXI sensors are animal tolerant and feature digital analysis to exclude cause of false alarm. The VXI-St is the standard hardwired model.
Digital analysis for enhanced reliability
The VXI sensors features a digital microprocessor which analyses the infrared emissions received and differentiate the ones generated by human from the ones generated by sunlight, animals, vegetation sway, or weather conditions. This intelligence makes the risk of false alarm very low.
Flexible detection coverage
The detection length of the VXI sensors can be set to 12m, 8.5m, 6m, 5.5m or 2.5m to adapt to the site configuration. The sensor comes as well with a choice of pre-cut masking templates to modify the detection areas and only focus on the points of interest.
Applications
- Buildings
- Approach
- House
- Garage
- Driveway
Key Features
- 12m PIR for approach detection
- Animal tolerance and digital analysis
- End of line resistors option
